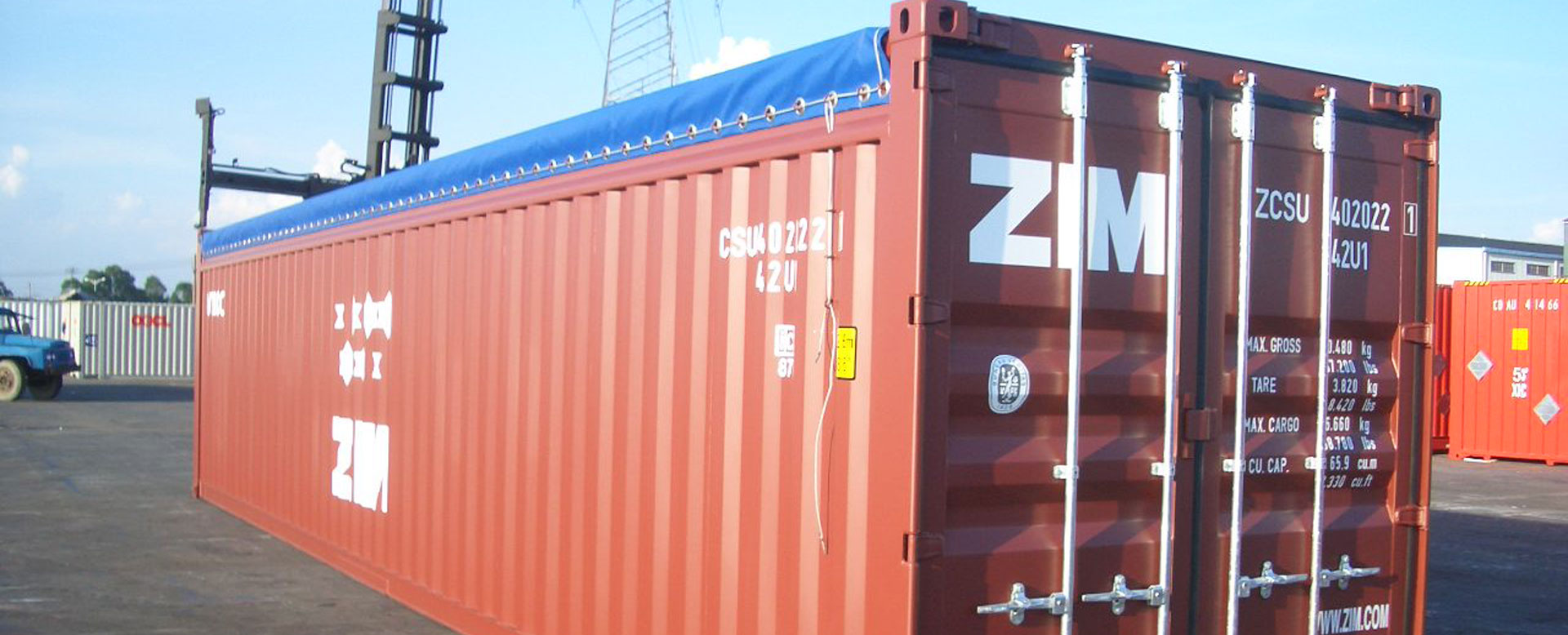

开顶式集装箱
 |
General Use: Suitable for tall or large cargo that cannot be loaded through the container doors, such as machinery, sheet glass and building materials. |
|||||||||
| Size | Weight* Kilograms Lbs. |
Internal Dimensions* millimeters feet/inches |
Door Openings* millimeters feet/inches |
Vol. m 3 ft. 3 |
Notes | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Feet | Max. Gross Weight |
Tare Weight |
Max Payload |
Length | Width | Height | Width | Height | Capacity | |
| 20 | 24,000 | 2,140 | 21,860 | 5,894 | 2,344 | 2,347 | 2.336 | 2,275 | 31.5 | Door headlock removable steel |
| 52,910 | 4,717 | 48,192 | 19' 4 1/8" |
7' 8 5/16" |
7' 8 3/8" |
7' 7 15/16" |
7' 5 1/2" |
1,112 | ||
| 20 | 30,480 | 2,250 | 28,230 | 5,894 | 2,344 | 2,347 | 2.336 | 2,275 | 31.5 | |
| 67,200 | 4,960 | 62,240 | 19' 4 1/8" |
7' 8 5/16" |
7' 8 3/8" |
7' 7 15/16" |
7' 5 1/2" |
1,112 | ||
| 40 | 30,480 | 3,800 | 26,680 | 12,027 | 2,344 | 2,347 | 2,336 | 2,275 | 67.0 | |
| 67,200 | 8,158 | 59,049 | 39' 5 1/2" |
7' 8 5/16" |
7' 8 3/8" |
7' 7 15/16" |
7' 5 1/2" |
2,365.6 | ||
* All information in this guide is general data only. The accurate max. gross Weight should be according to the container CSC plate. The dimensions and weights are based on manufacture's specifications. Tolerance factor must always be taken into account by supplier.
